WiFi Solver FDTD APK v2.4
Requirements: 2.2 +
Overview:With this application you can take a floorplan of your home, set the area of a Wifi switch, and recreate how the electromagnetic waves proliferate.
This is focused around a late blog entry "Helmhurts" at www.jasmcole.com, which was emphasized on io9, Ars Technica, the Daily Mail, new Scientific American and numerous different online journals.
This application utilizes the 2d Finite Difference Time Domain strategy to fathom Maxwell's comparison on a Cartesian network. An illustration floorplan is incorporated in the application.
The most effective method to utilize:
Your floorplan needs to be a .png document, with vacant space stamped dark and dividers checked white. Color or grayscale pictures will be changed over into monochrome pictures on stacking - this may take a couple of seconds.
Pixels are mapped to 1 centimeter, so scale the floorplan suitably.
The reenactment is restricted in rate because of the versatile processor, so attempt to keep pictures beneath more or less 500x500 pixels

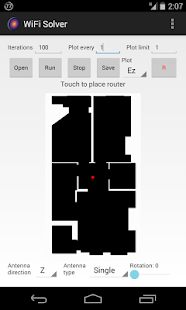

Touch the picture to set a switch area, checked by a red round. Select the radio wire parameters at the bottom.
Set the quantity of cycles to run for, for how regularly to plot the result, and as far as possible on the colourmap scale.
Pick a field to plot - the default is the out-of-plane electric field.
Click run and the reproduction will start. Click stop to stop whenever - this spares the reenactment advance which might be proceeded by clicking run once more. To reset, open a picture once more.
To spare the reproduction yield as a picture, click Save whenever. Pictures are spared to inside/outside capacity and added to the end of the Polaroid roll.
To begin recording a reproduction click the record "R" catch. At the point when the recreation is halted a GIF activity is produced.
Under the hat:
A reception apparatus wavers at 2.4 Ghz. The edges of the picture use engrossing limit conditions as in Mur 1981, new IEEE Transactions on Electromagnetic Compatibility.
Where dividers are characterized, the refractive file is situated to the proper one for cement at this recurrence. Differing refractive record profiles are not right now executed.
Wavelength and determination are at present consistent, this may change in a future discharge.
Disclaimer:
This application is not planned as a genuine substitution for existing EM recreation programming bundles.
As a 2d estimate including just basic dividers it doesn't precisely display a given floorplan.
